Pinnacle. Peak at Everything

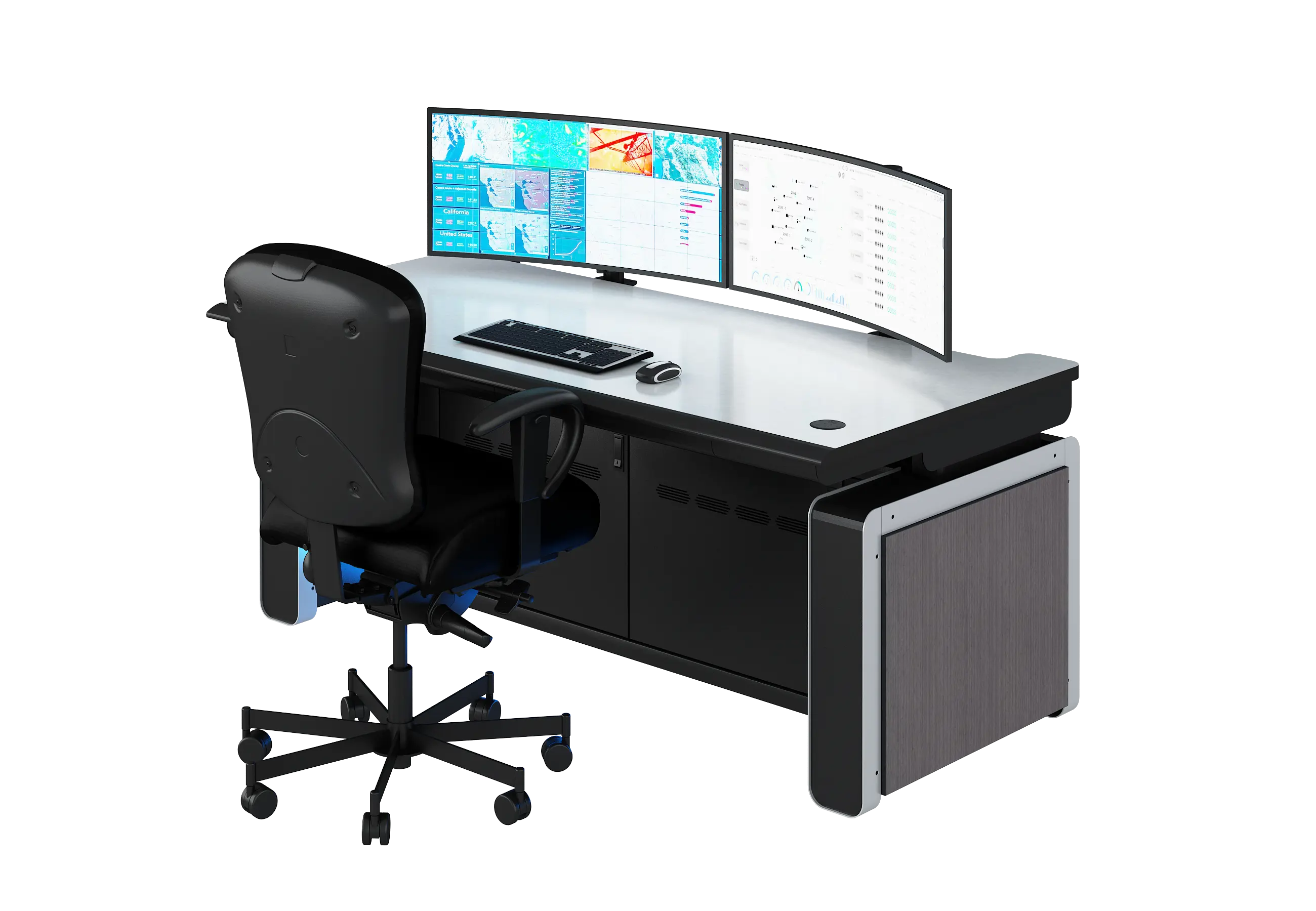

Offering Pinnacle, Winsted’s revolutionary console that offers the peak operator experience. Crafted in a sleek contemporary look with cutting-edge engineering and meticulous attention to detail, Pinnacle puts the tech in technical furniture.
With unrivaled flexibility and serviceability, Pinnacle features best-in-class cable management, with a plethora of connectivity options, integrated convenience outlets and ports, Qi wireless charging, the best mix of monitor arms and task lights, Personal Environmental Comfort system, and status lighting options. These premium features make Pinnacle the optimal choice of any control room.
Elevate your control room with Pinnacle – the peak of console design.

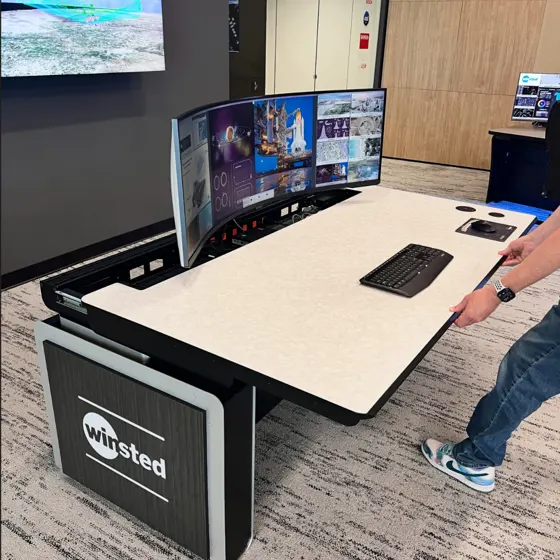

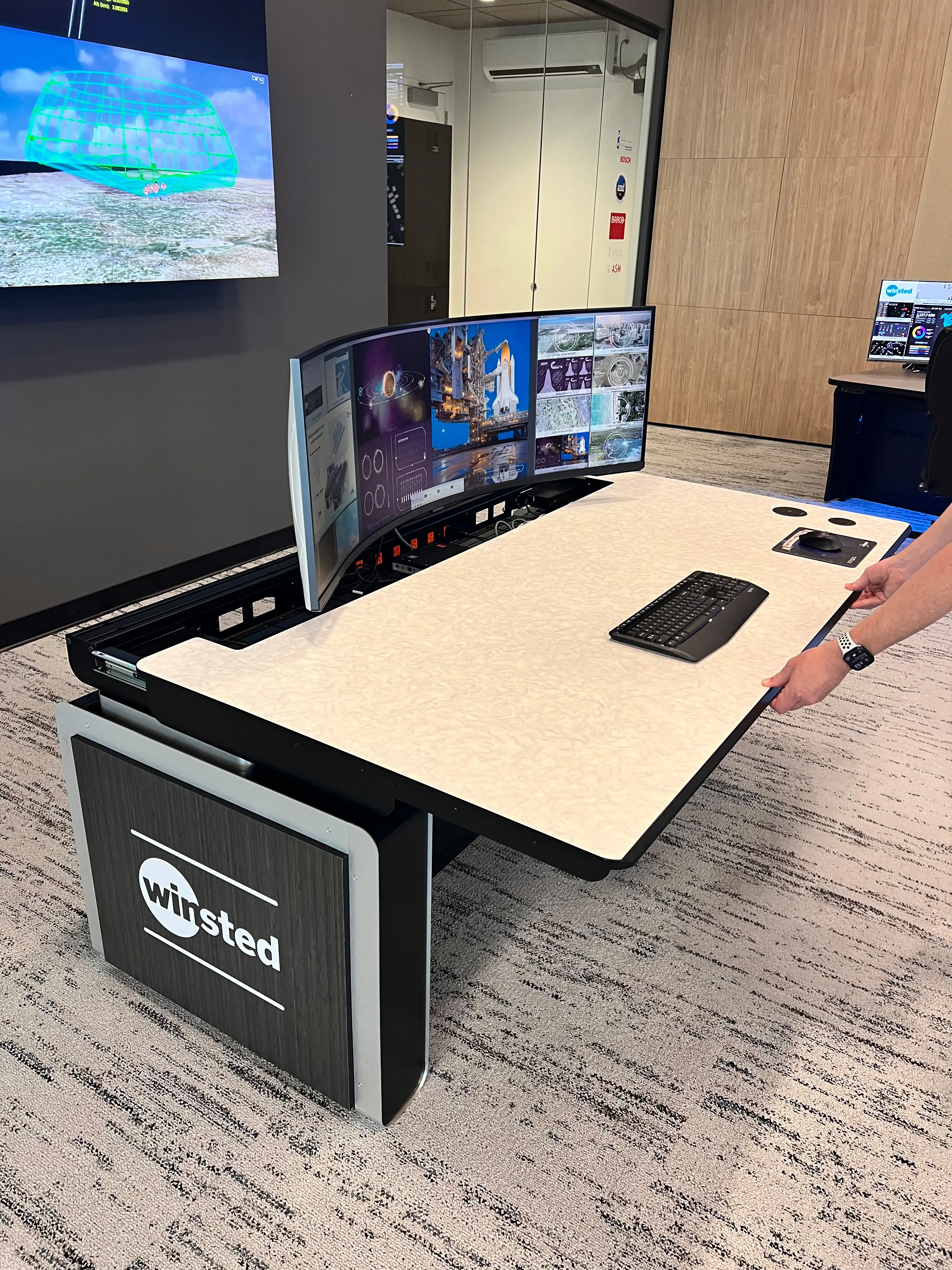

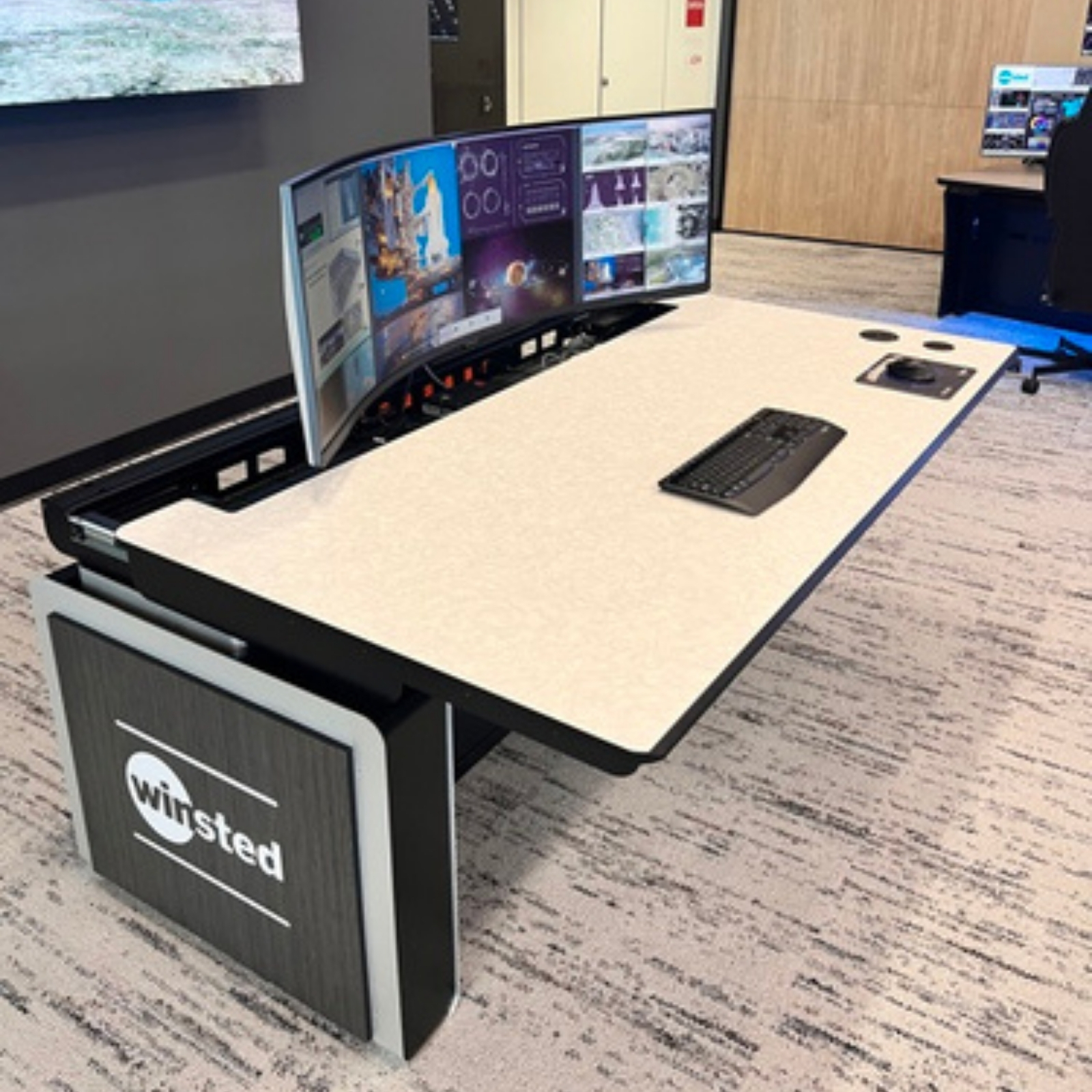

Slide forward Pinnacle’s unique sliding worksurface and you’ll discover the game changing Technology Tray. This hidden gem is an expansive cable management tray large enough to hold small electronics and Micro PCs. It features integrated AC power and a wide range of AV and Network connectivity, such as fiber optic and ethernet patches, USB connections, video connections, audio patch connections, and integrated USB-C power boasting 45 watts per junction – all of which are fully custom configured.
Pinnacle is designed with cable management at
its core. Utilizing an industry-leading three tier
design, bid farewell to cable clutter and embrace seamless organization.

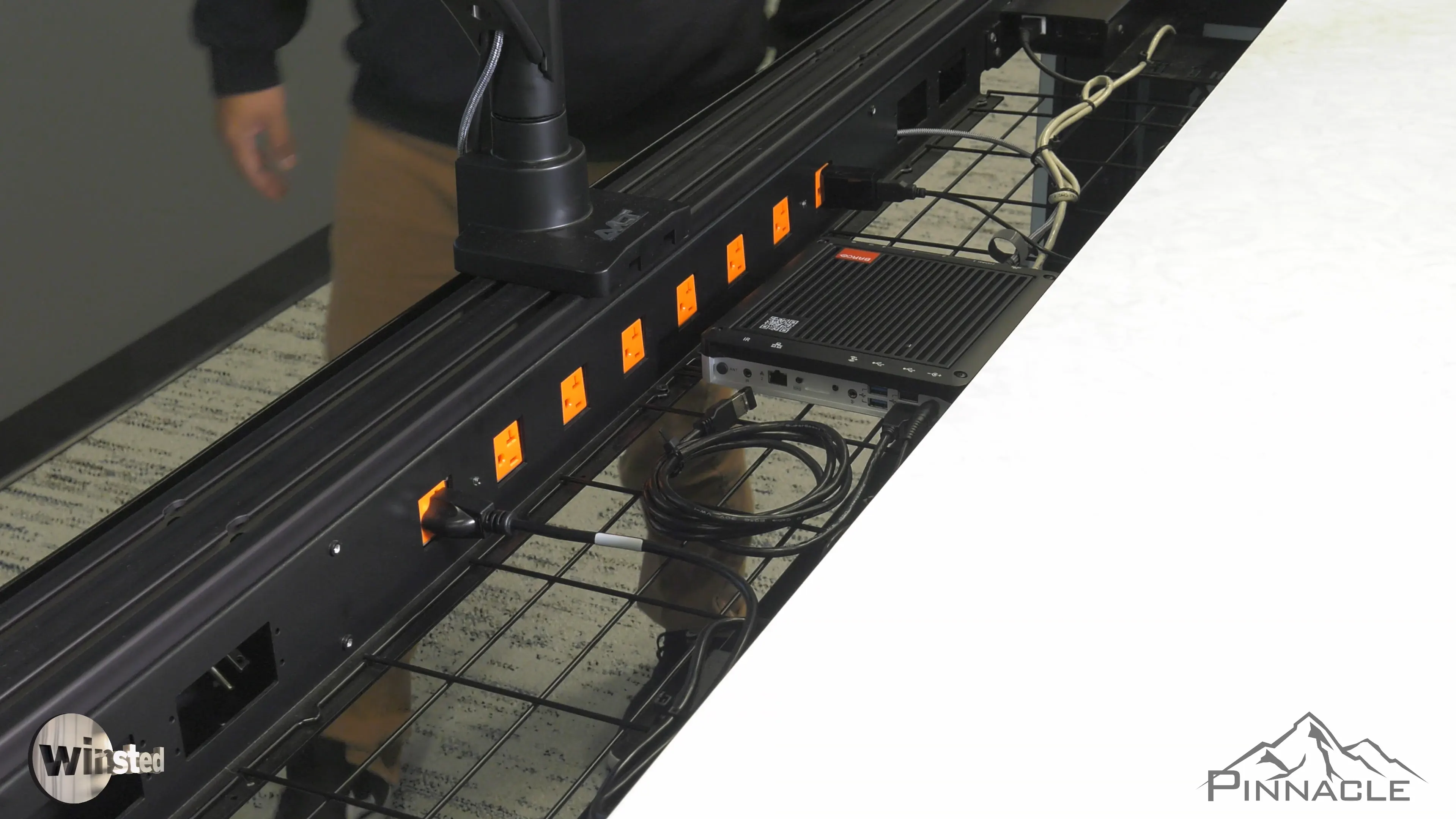

Starting at Pinnacle’s open and fully accessible console footprint, a full width mesh cable tray makes it easy to bring cabling into the console from underfloor. No more difficulties pinpointing a specific grommet location. This is flexibility at its finest.

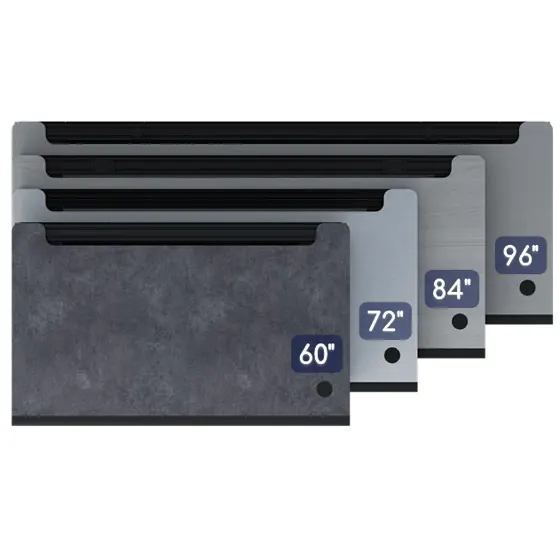

Pinnacle is available in several console sizes including 60, 72, 84, and 96 inches.
Additional Features
Operator Convenience
Operator convenience features are plentiful within Pinnacle. A flush mounted pop-up convenience connectivity module is available for corded charging or convenience connections. Integrated wireless Qi charging keeps the worksurface cable-free, while charging Operators’ smartphones via the integrated induction charging system built into the Pinnacle surface.

Operator convenience features are plentiful within Pinnacle. A flush mounted pop-up convenience connectivity module is available for corded charging or convenience connections. Integrated wireless Qi charging keeps the worksurface cable-free, while charging Operators’ smartphones via the integrated induction charging system built into the Pinnacle surface.
Space & Power
Space & Power
Integrated power outlets and data ports are included, with the option to add concealed electrical boxes, UPS power, or a TAA-compliant 12-port CAT6 patch panel.
Versa Track Rail
Versa Track Rail
The full-length Versa Track rail allows for flexible mounting of many available console accessories such as monitor arms and task lighting.
Operator Convenience
Operator Convenience
The flush-mounted pop-up convenience module is available for corded charging or convenience connections. Integrated wireless chargers for personal devices are also available.
Console Sizes
Console Sizes
Available in 60”, 72”, 84”, and 96” lengths at a depth of 36”.
Technology Furniture & Storage Options
Technology Furniture & Storage Options
Pinnacle offers a complete line of complementary storage solutions, including credenzas, file drawers, peninsulas, technology cabinets, and tables. These units continue the integrated cable management, allowing seamless connections between consoles and storage units. Technology tables and operational support tables maintain the same aesthetic, with built-in storage and cable management in the legs and frames. Available in any size or shape.
Work Surface Options

Laminate With Safeguard

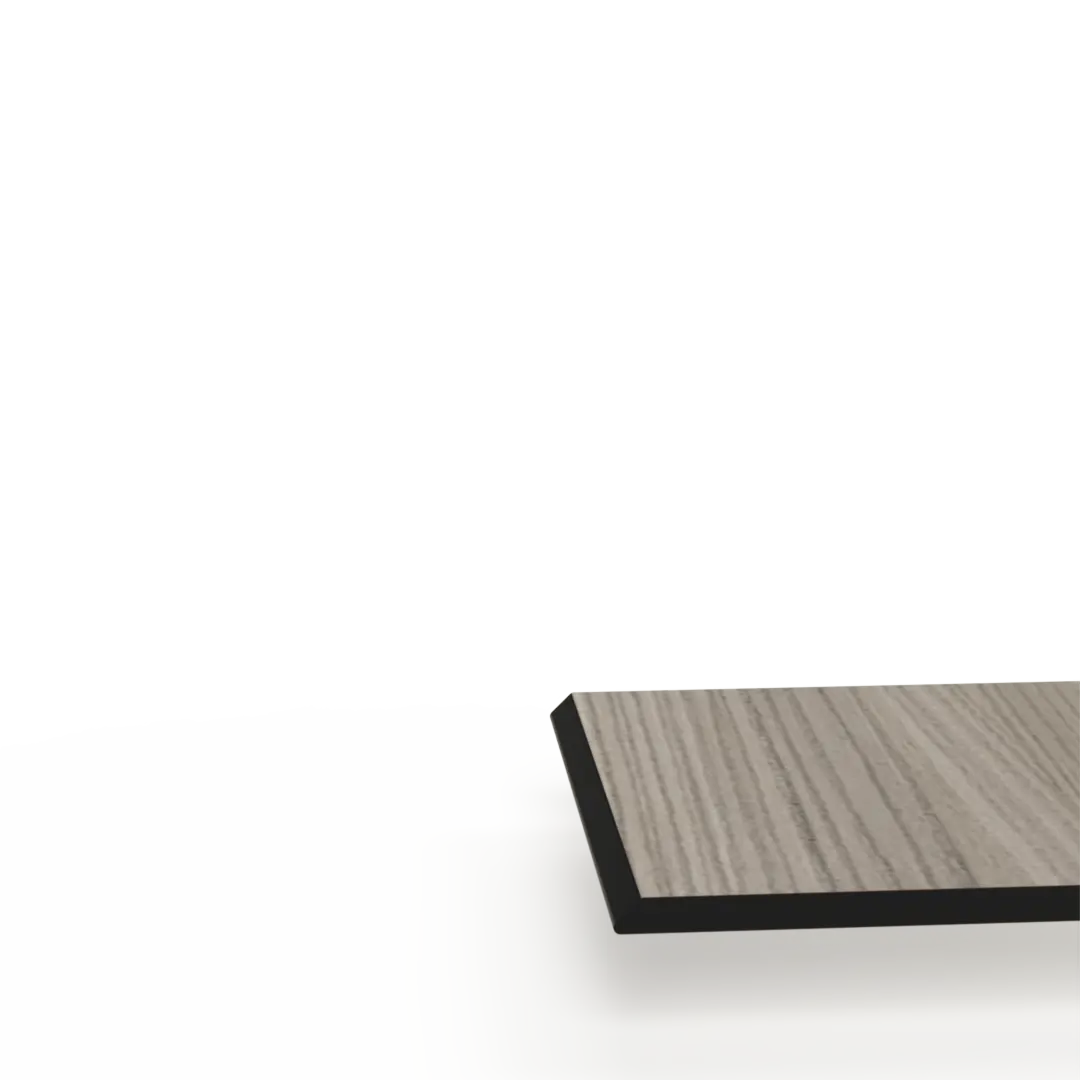

Choose from a broad range of colors, textures and patterns. We supply laminates from all the major manufacturers. The high-pressure laminate is bonded to a 1-1/8″ thick MDF core for strength and the work surface is finished with our durable Safeguard Edge.
FEATURES
- Durable high-pressure plastic laminate surface
- Available in a wide variety of colors and patterns
- Optional textures and gloss levels available
- Laminate is bonded to 1-1 /8″ thick MDF core
- Easy to clean and maintain
- Safeguard Edge provides exceptional durability

Comfort Edge
Our urethane Comfort Edge work surface offers the ultimate in flexibility and durability. The black urethane edge is molded to 1-1/8″ laminated industrial-grade 45lb. particleboard. We can supply laminates from any of the major manufacturers. The Comfort Edge work surface features a smooth, contoured profile to improve operator comfort and maximize productivity.
- Permanently bonded black urethane creates a long-lasting, water-tight seam with a smooth finish
- Ergonomic profile provides comfort and reduces the risk of injury from sharp edges
- Antibacterial and antifungal additives promote a healthy work environment
- UV-resistant urethane will not change color or deteriorate over time
- Suitable for the most demanding 24/7 control room operations

Solid Surface
Corian work surfaces are durable and feature an attractive, seamless appearance. The solid colors penetrate through the entire thickness of the material so blemishes are easily repaired. The smooth, nonporous finish is hygienic and easy to clean while being resistant to liquids and heat.
- Easy to clean and stain-resistant because liquid cannot penetrate the surface
- Durability and renewability with common abrasive cleaners reduce the need for replacement, which makes Corian inherently environmentally friendly
- Joints are unobtrusive and impermeable with a seamless appearance
- Colors and patterns penetrate through the surface and cannot wear away
- Inert, non-toxic, chemically unreactive, hypoallergenic and fire-resistant
- Advanced blend of natural minerals and acrylic polymer
WINSTED CONTROL ROOM CONSOLES
SPECIFICATIONS
- Pre-engineered modular construction.
- Available from pre-defined set of manufacturer’s model numbers.
- Free from alterations to design either prior to or following installation.
- Supplied knocked-down; assembly accomplished without need for welding or modifications.
- Constructed of steel superstructure framework consisting of end frames connected by horizontal crossbar.
- Incorporated fully integrated aluminum track system capable of supporting variety of monitor arrays.
- Provide uninterrupted lateral adjustability of monitors.
- Capable of integrating one set of electric-lift columns along with cable followers in horizontal crossbar.
- Support fully loaded console and incorporate threaded adjustable glides.
- Incorporate lift off panel on the open base console legs.
- Height-Adjustable Consoles: Comprised of steel end frames with two electric-lift legs and ergonomic work surfaces.
- 1.5 x 3 inches; two per work surface on height-adjustable consoles.
- Integrated cable channel in base.
- Incorporated fully integrated aluminum track system capable of supporting variety of monitor arrays.
- Provide uninterrupted lateral adjustability of monitors.
