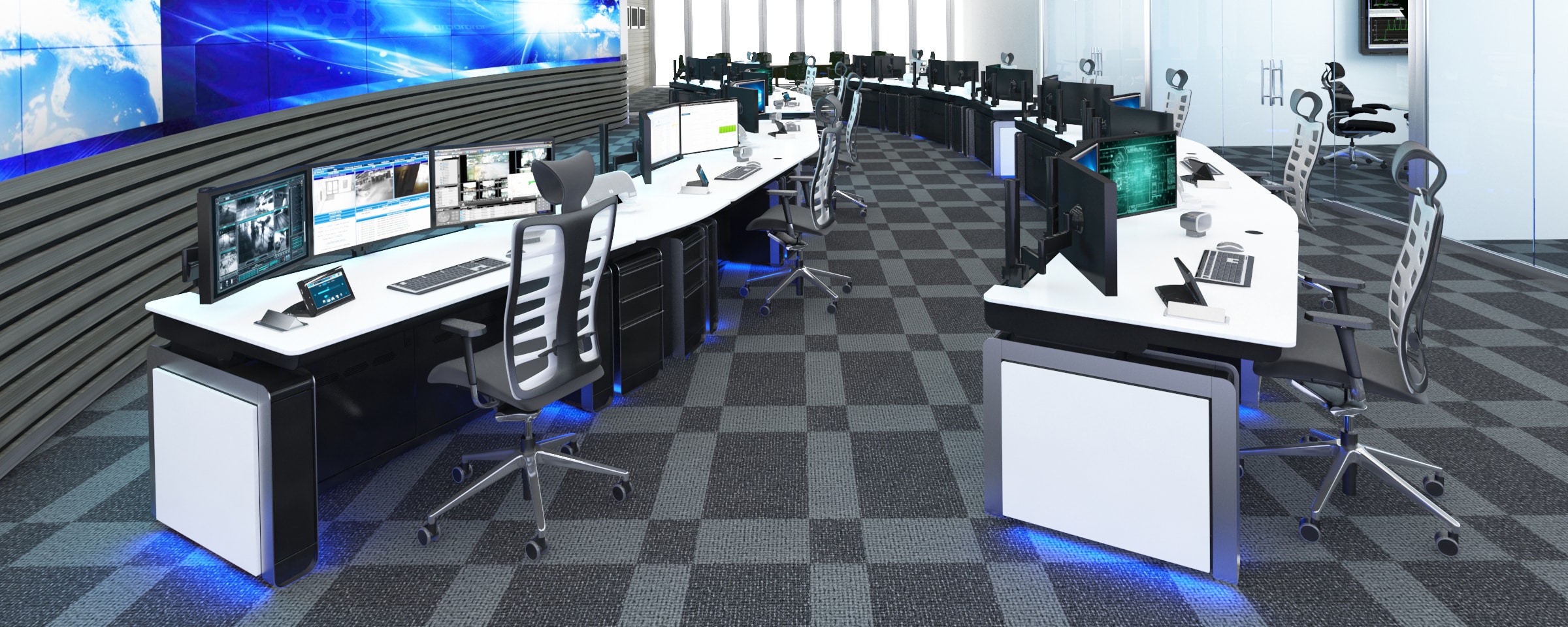

Pinnacle Consoles
Offering Pinnacle, Winsted’s revolutionary console that offers the peak operator experience. Crafted in a sleek contemporary look with cutting-edge engineering and meticulous attention to detail, Pinnacle puts the tech in technical furniture.
Pinnacle. Peak at Everything
With unrivaled flexibility and serviceability, Pinnacle features best-in-class cable management, with a plethora of connectivity options, integrated convenience outlets and ports, Qi wireless charging, the best mix of monitor arms and task lights, Personal Environmental Comfort system, and status lighting options. These premium features make Pinnacle the optimal choice of any control room.
Elevate your control room with Pinnacle – the peak of console design.
Sliding Work Surface
Slide forward Pinnacle’s unique sliding worksurface and you’ll discover the game changing Technology Tray. This hidden gem is an expansive cable management tray large enough to hold small electronics and Micro PCs. It features integrated AC power and a wide range of AV and Network connectivity, such as fiber optic and ethernet patches, USB connections, video connections, audio patch connections, and integrated USB-C power boasting 45 watts per junction – all of which are fully custom configured.
Cable Management

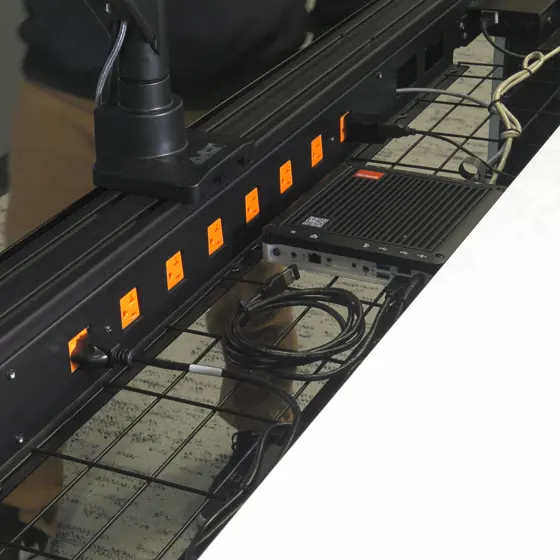

Pinnacle is designed with cable management at its core. Utilizing an industry-leading three tier design, bid farewell to cable clutter and embrace seamless organization.
Starting at Pinnacle’s open and fully accessible console footprint, a full width mesh cable tray makes it easy to bring cabling into the console from underfloor. No more difficulties pinpointing a specific grommet location. This is flexibility at its finest.
Slide forward Pinnacle’s unique sliding worksurface and you’ll discover the game changing Technology Tray. This hidden gem is an expansive cable management tray large enough to hold small electronics and Micro PCs. It features integrated AC power and a wide range of AV and Network connectivity, such as fiber optic and ethernet patches, USB connections, video connections, audio patch connections, and integrated USB-C power boasting 45 watts per junction – all of which are fully custom configured.
Pinnacle is designed with cable management at
its core. Utilizing an industry-leading three tier
design, bid farewell to cable clutter and embrace seamless organization.
Starting at Pinnacle’s open and fully accessible console footprint, a full width mesh cable tray makes it easy to bring cabling into the console from underfloor. No more difficulties pinpointing a specific grommet location. This is flexibility at its finest.

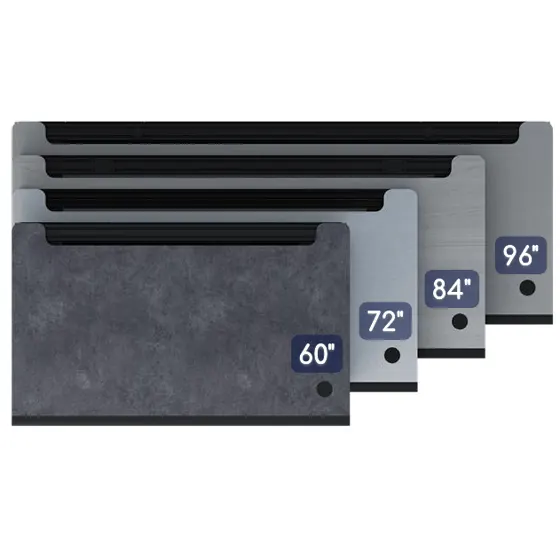

Pinnacle is available in several console sizes including 60, 72, 84, and 96 inches.
Pinnacle offers a complete line of complementary storage solutions, including credenzas, file drawers, peninsulas, technology cabinets, and tables. These units continue the integrated cable management, allowing seamless connections between consoles and storage units. Technology tables and operational support tables maintain the same aesthetic, with built-in storage and cable management in the legs and frames. Available in any size or shape.
Operator Convenience
Operator Convenience
Operator convenience features are plentiful within Pinnacle. A flush mounted pop-up convenience connectivity module is available for corded charging or convenience connections. Integrated wireless Qi charging keeps the worksurface cable-free, while charging Operators’ smartphones via the integrated induction charging system built into the Pinnacle surface.
Space & Power
Space & Power
Integrated power outlets and data ports are included, with the option to add concealed electrical boxes, UPS power, or a TAA-compliant 12-port CAT6 patch panel.
Versa-Trak Accessory Rail
Versa-Trak Accessory Rail
The full-length Versa Track rail allows for flexible mounting of many available console accessories such as monitor arms and task lighting.
Work Surface Options
Compact Laminate
A very durable material that is widely used in commercial installations.
FEATURES
- Contemporary design aesthetic with a thin profile
- Low-maintenance, stain-repellent material that needs minimal cleaning
- Non-toxic, non-polluting, and completely hygienic
- Moisture-proof, waterproof, and mildew resistant
- Anti-static, antibacterial, and UV resistance
Comfort Edge
Our urethane Comfort Edge work surface offers the ultimate in flexibility and durability. The black urethane edge is molded to 1-1/8″ laminated industrial-grade 45lb. particleboard. We can supply laminates from any of the major manufacturers. The Comfort Edge work surface features a smooth, contoured profile to improve operator comfort and maximize productivity.
- Permanently bonded black urethane creates a long-lasting, water-tight seam with a smooth finish
- Ergonomic profile provides comfort and reduces the risk of injury from sharp edges
- Antibacterial and antifungal additives promote a healthy work environment
- UV-resistant urethane will not change color or deteriorate over time
- Suitable for the most demanding 24/7 control room operations
WINSTED CONTROL ROOM CONSOLES
SPECIFICATIONS
- Pre-engineered modular construction.
- Available from pre-defined set of manufacturer’s model numbers.
- Free from alterations to design either prior to or following installation.
- Supplied knocked-down; assembly accomplished without need for welding or modifications.
- Constructed of steel superstructure framework consisting of end frames connected by horizontal crossbar.
- Incorporated fully integrated aluminum track system capable of supporting variety of monitor arrays.
- Provide uninterrupted lateral adjustability of monitors.
- Capable of integrating one set of electric-lift columns along with cable followers in horizontal crossbar.
- Support fully loaded console and incorporate threaded adjustable glides.
- Incorporate lift off panel on the open base console legs.
- Height-Adjustable Consoles: Comprised of steel end frames with two electric-lift legs and ergonomic work surfaces.
- 1.5 x 3 inches; two per work surface on height-adjustable consoles.
- Integrated cable channel in base.
- Incorporated fully integrated aluminum track system capable of supporting variety of monitor arrays.
- Provide uninterrupted lateral adjustability of monitors.
WARRANTIES
Customer Care Guarantee
- All fixed steel structure frame components
- Adjustable, sliding or hinged components
- Laminated surfaces
- Power-actuated lift mechanisms
- General electrical components
- Monitor mounts and accessories
- Labor and delivery of warrantied components delivered within the 48 contiguous United States
